Hideout Craft Arbor Press Pressure Foot

Description

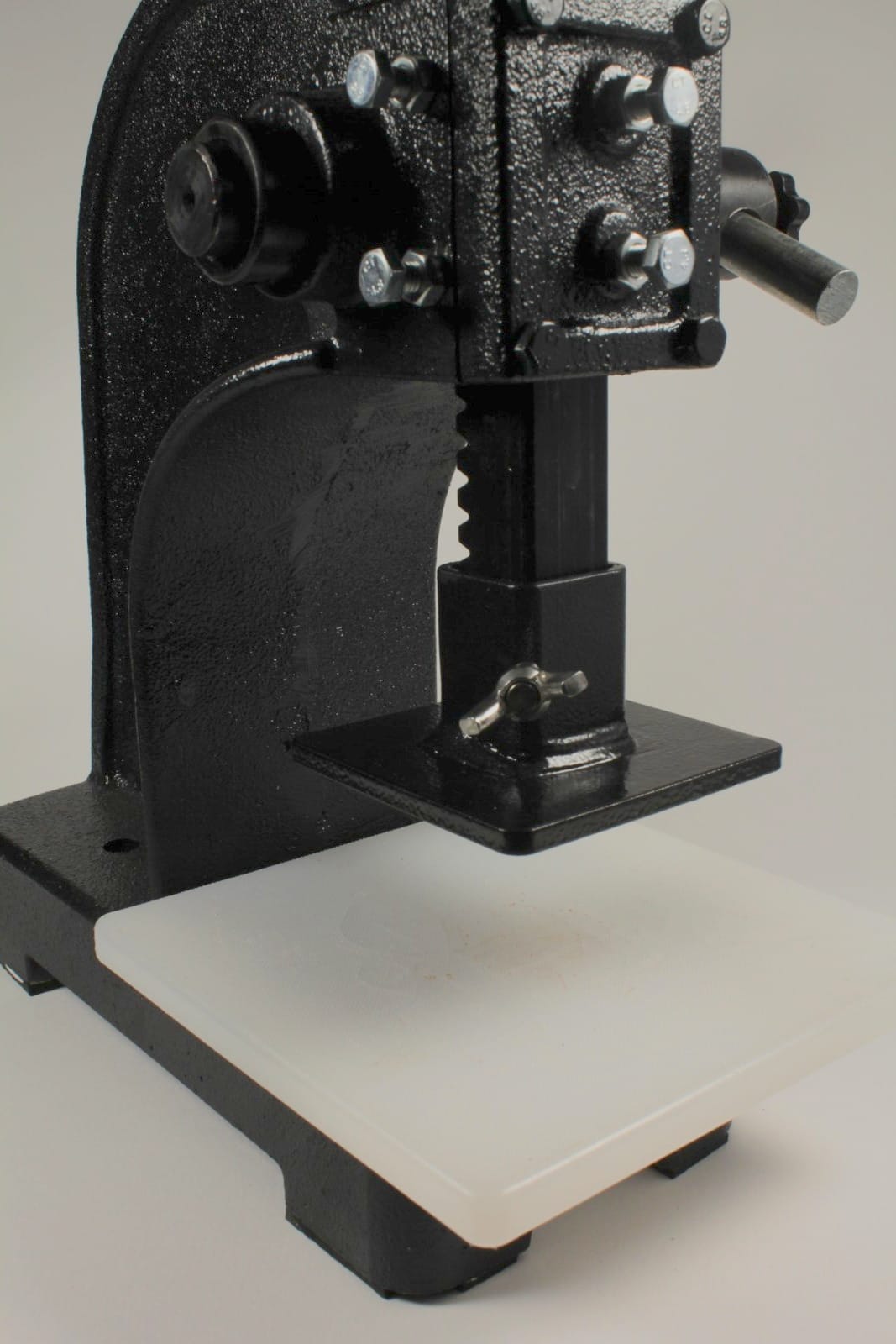

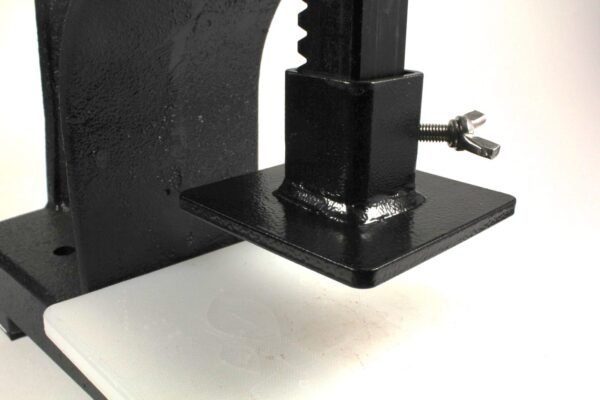

A solid steel foot adapter designed to convert a standard arbor press into a stable, flat pressing platform suitable for leathercraft and general workshop use.

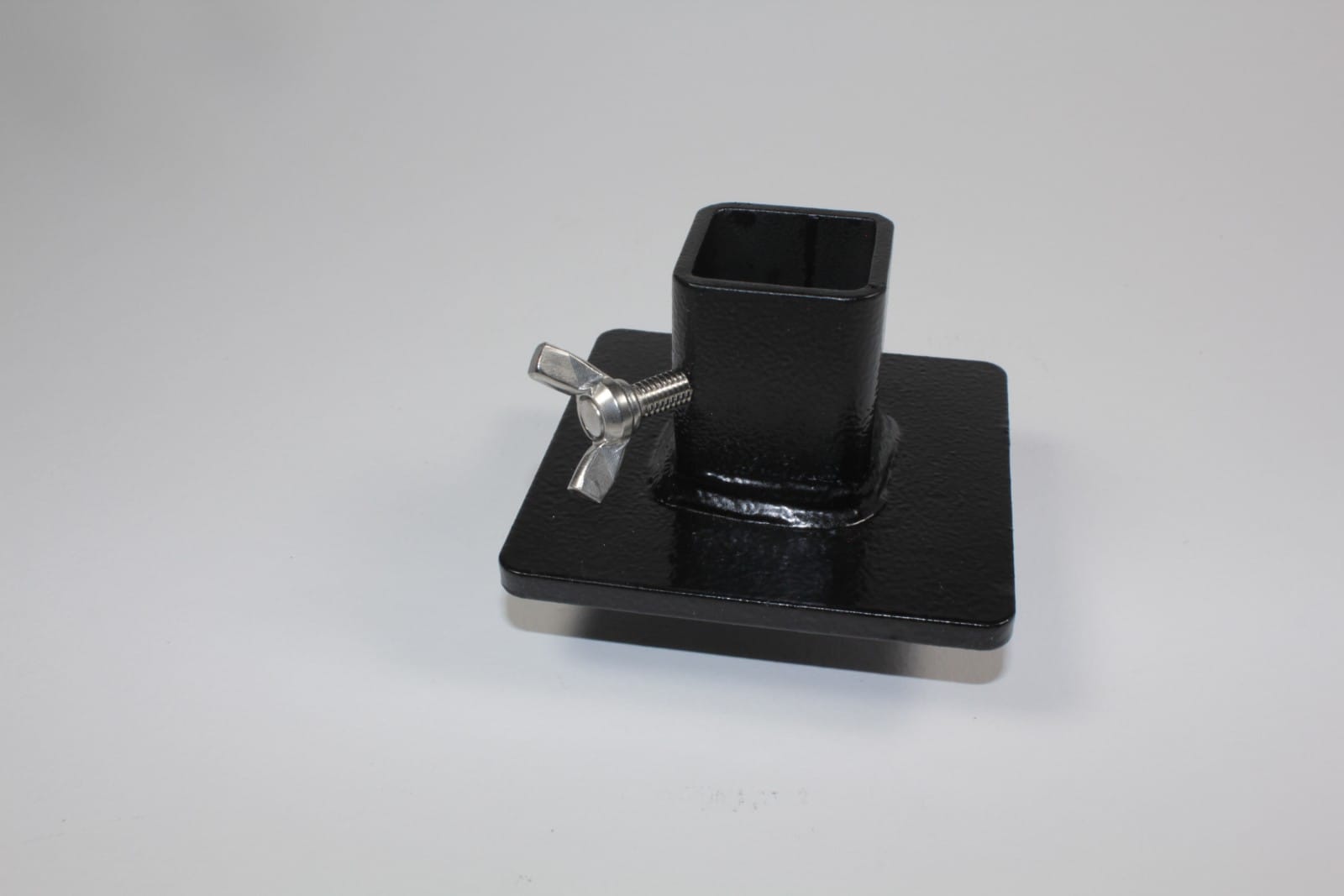

The 27mm internal square sleeve fits arbor press rams measuring up to 26.5mm square, providing a secure and centred fit when tightened with the side locking screw.

Key Details

• Designed for most 0.5–1 ton arbor presses
• Fits square rams up to 26.5mm x 26.5mm
• Requires a press equipped with a side locking screw
• Transforms your arbor press into a pressing platform for rivet setting, snap setting, leather stamp alignment, hole punching and general workshop pressing
• When combined with the Hideout Craft Ram Adapter system, becomes a fully modular pressing solution

Specifications

• Internal Square Size: 27mm x 27mm
• Maximum Compatible Ram Size: 26.5mm x 26.5mm
• Height: 40mm
• Base Plate: 80mm x 80mm
• Base Thickness: 5mm
• Material: Powder-coated steel
• Securing Method: Side locking screw

Important

• Ram adapters, tooling and rivet setters shown in images are not included unless purchased separately.
• Always confirm your ram dimensions before purchase.

See the full workshop guide explaining how the Hideout Craft arbor press adapter system is used for die cutting, logo stamps, rivet setters, and threaded letter stamp tooling.
