Hideout Craft Arbor Press Ram Adapter Leathercraft Press Tool

Description

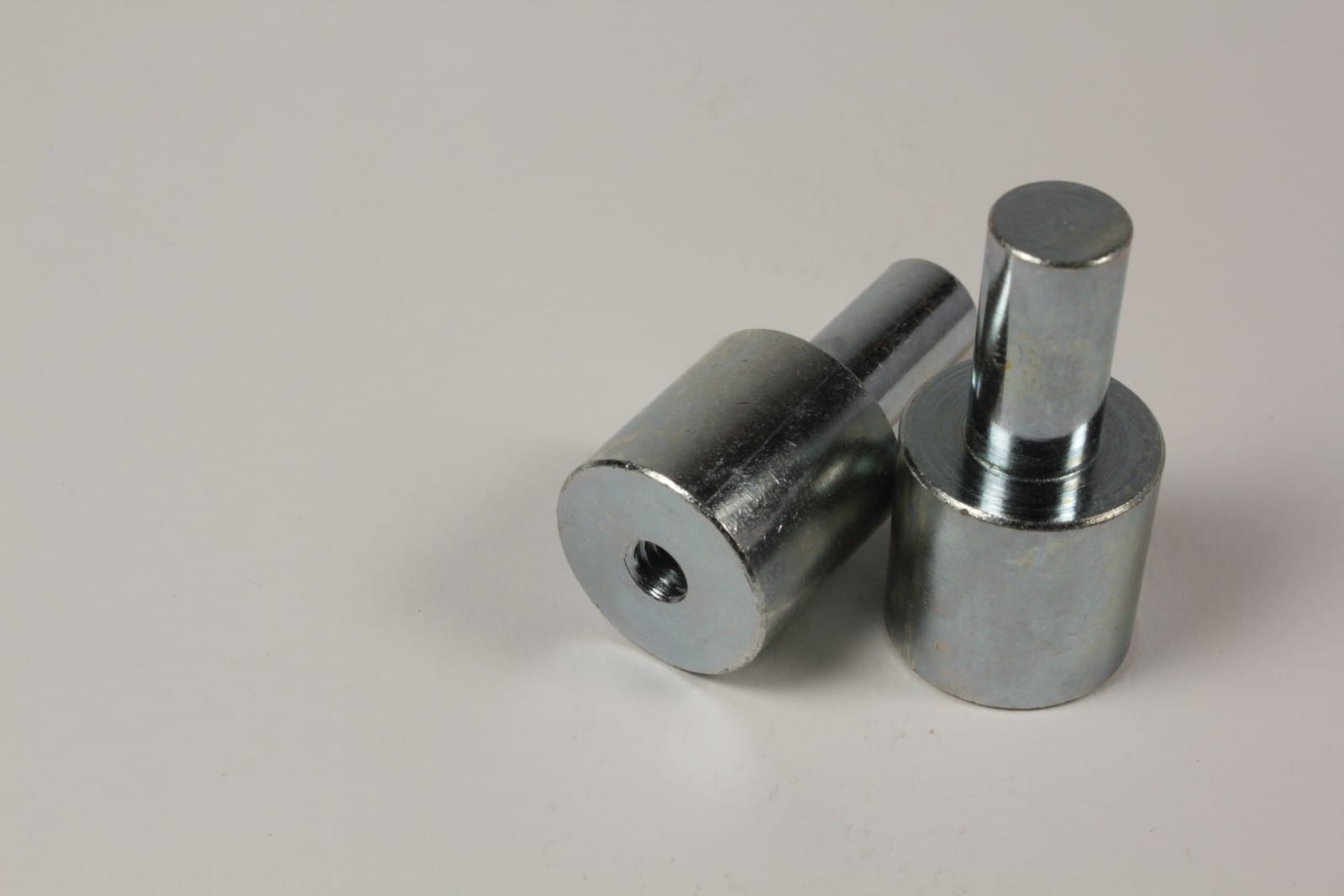

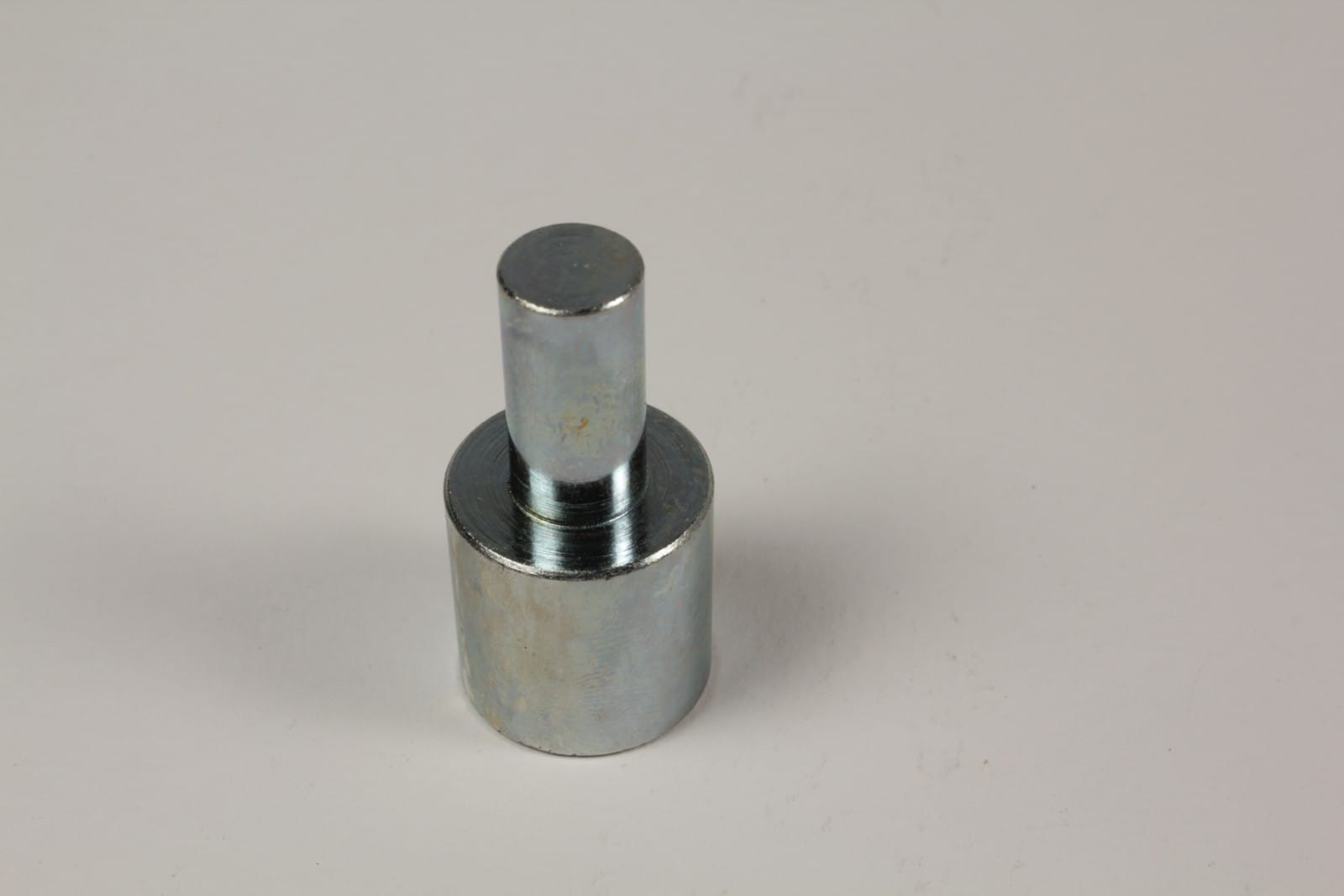

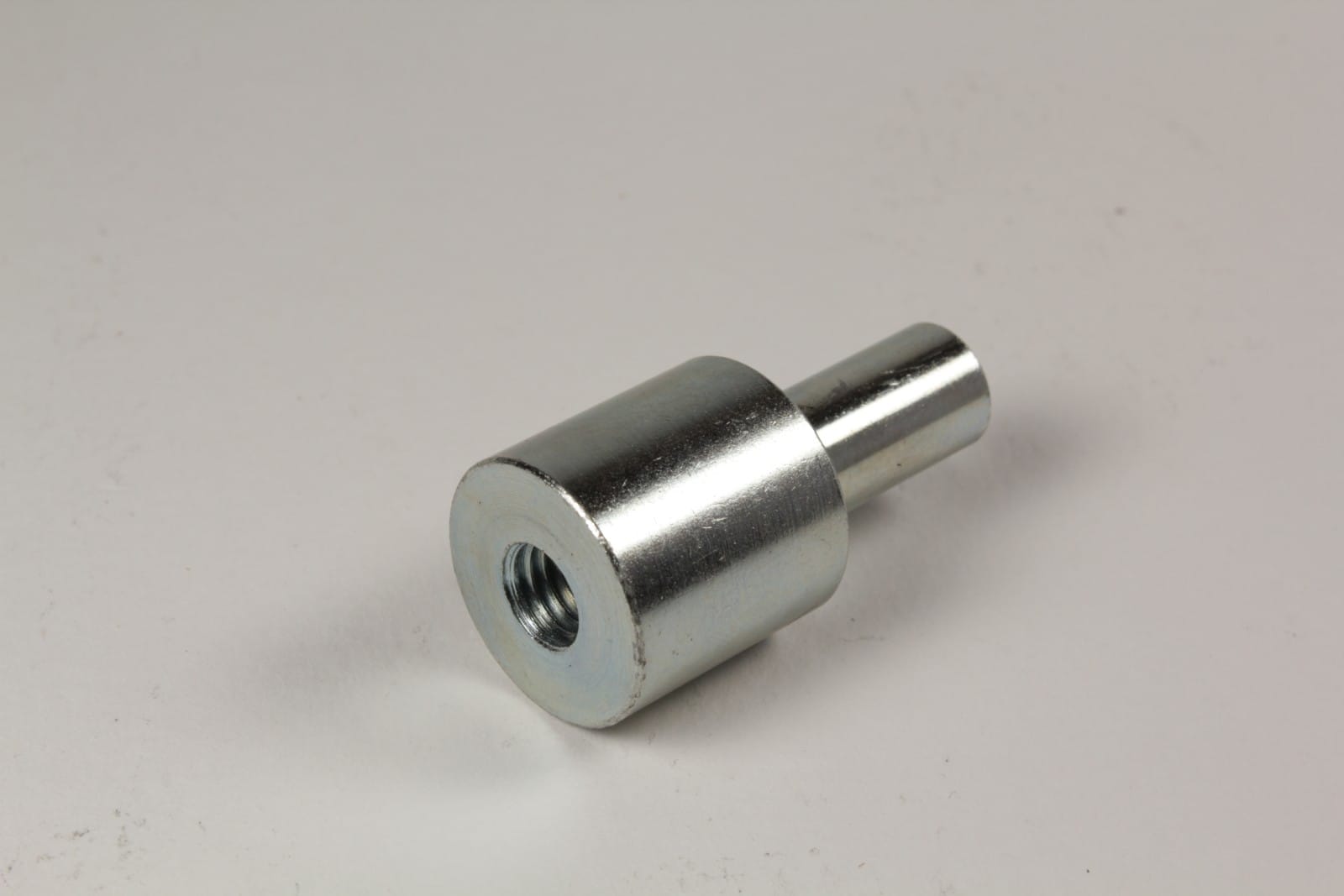

A precision-machined steel insert designed to fit arbor press rams with a 10mm vertical bore and side locking screw.

This adapter allows threaded tooling to be securely mounted in your arbor press, transforming it into a versatile pressing and stamping system.

Available in two internal thread options to suit common tooling standards.

Choosing the Right Thread

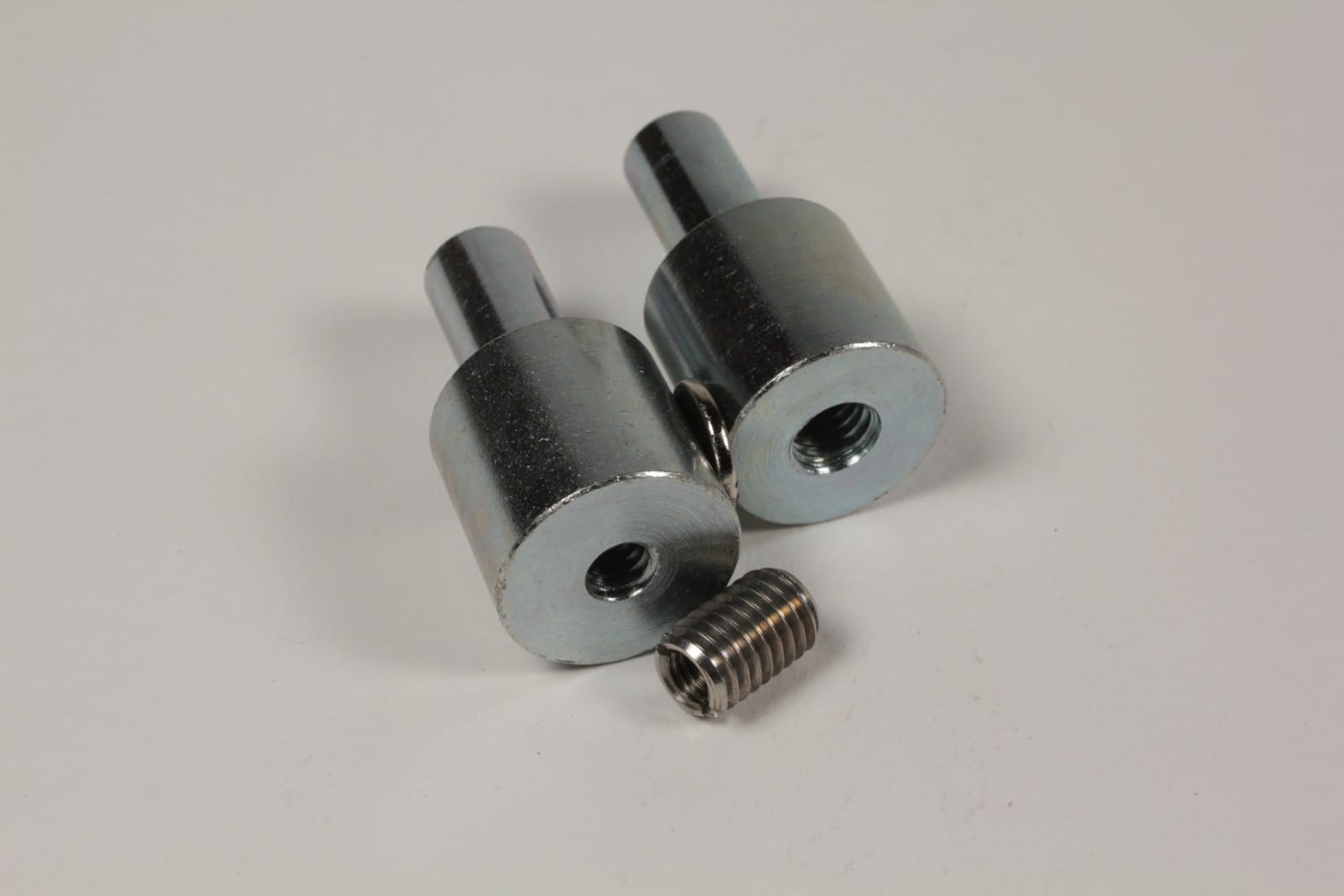

• M8 Internal Thread
• 1/4″ UNC Internal Thread

Choose the thread type that matches your tooling.

Key Details

• Ideal for rivet setters (Big Green Machine type)
• Ideal for logo stamps
• Ideal for letter stamping sets
• Ideal for hole punches
• Ideal for custom threaded tooling
• Requires arbor presses with a 10mm (or slightly larger) vertical ram bore
• Requires a side locking screw

When combined with the Hideout Craft Foot Adapter, this becomes part of a modular multi-tool arbor press system.

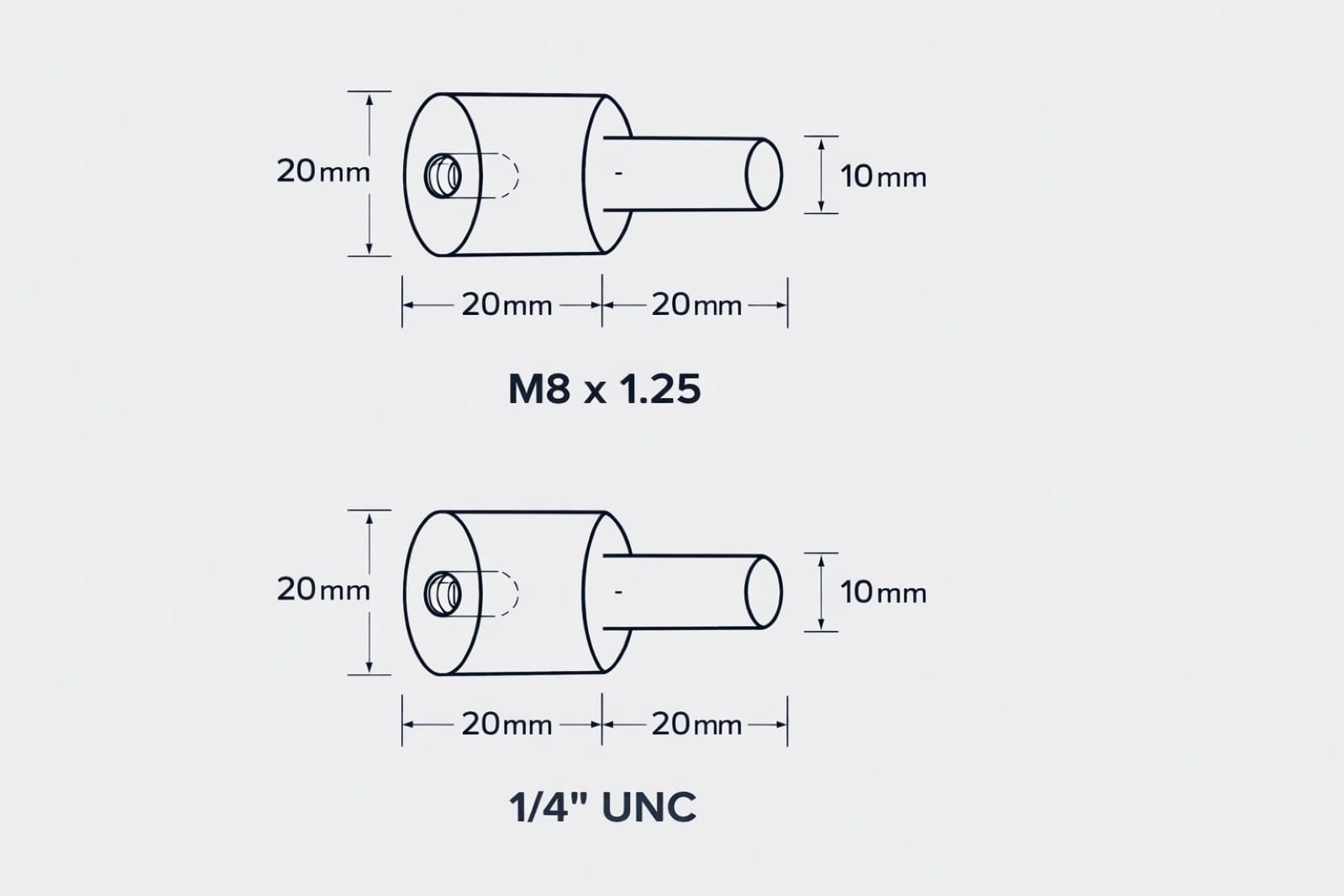

Specifications

• Insert Diameter: 10mm
• Body Length: 20mm
• Overall Length: 40mm
• Internal Thread: M8 x 1.25 or 1/4″ UNC
• Material: Zinc-plated steel
• Securing Method: Ram locking screw

Tooling and stamps shown in images are not included. See the full workshop guide explaining how the Hideout Craft arbor press adapter system is used for die cutting, logo stamps, rivet setters, and threaded letter stamp tooling.
