Hideout Craft Arbor Press Multi-Tool Adapter Set

Description

Hideout Craft Arbor Press Multi-Tool Adapter Set – Complete System

A complete arbor press conversion system designed to provide maximum tooling compatibility and stable pressing support.

This set transforms a standard 0.5–1 ton arbor press into a modular multi-tool pressing system, suitable for leathercraft and general workshop use.

By including both M8 and 1/4″ UNC thread standards, this system allows seamless switching between common tooling types without changing base components.

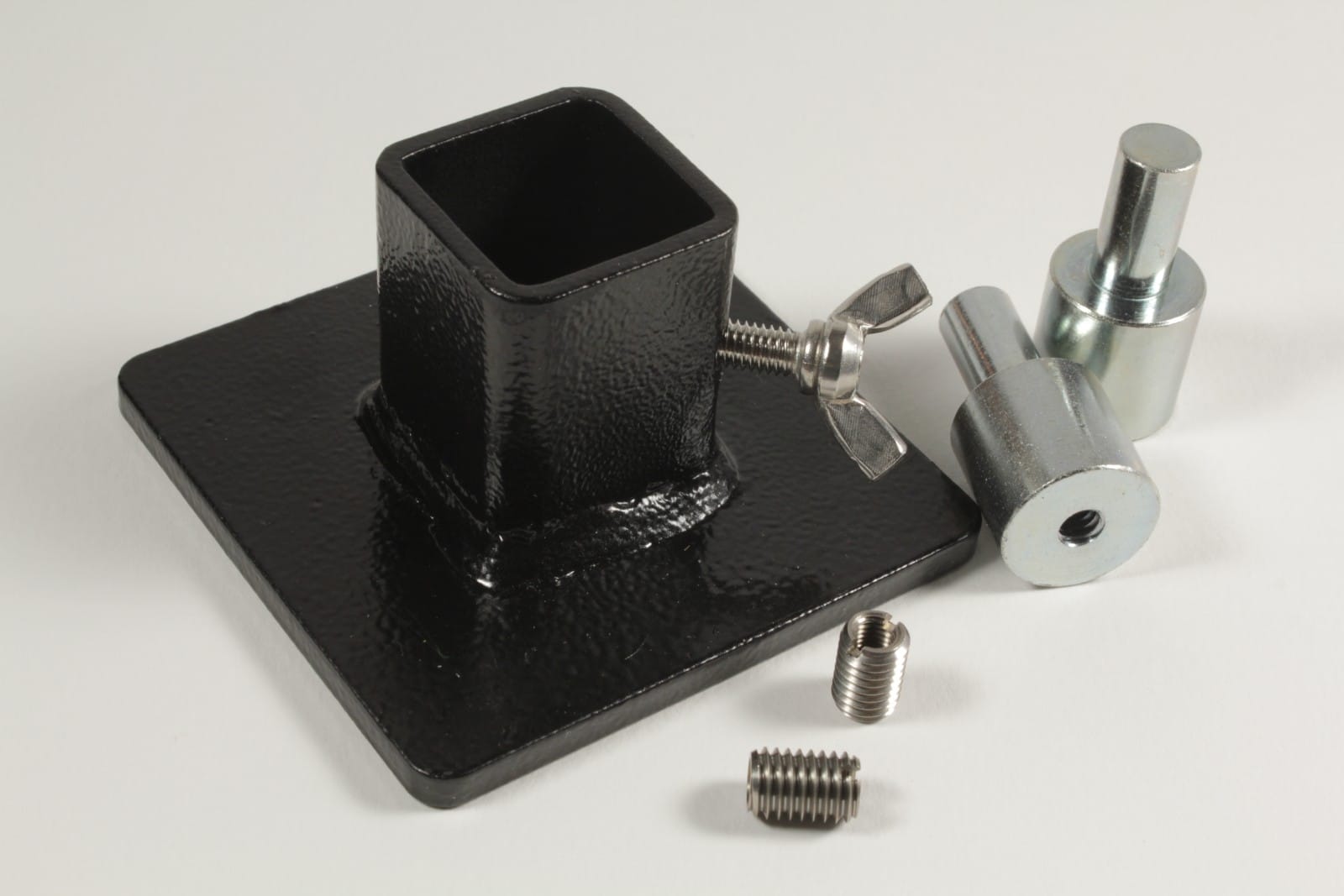

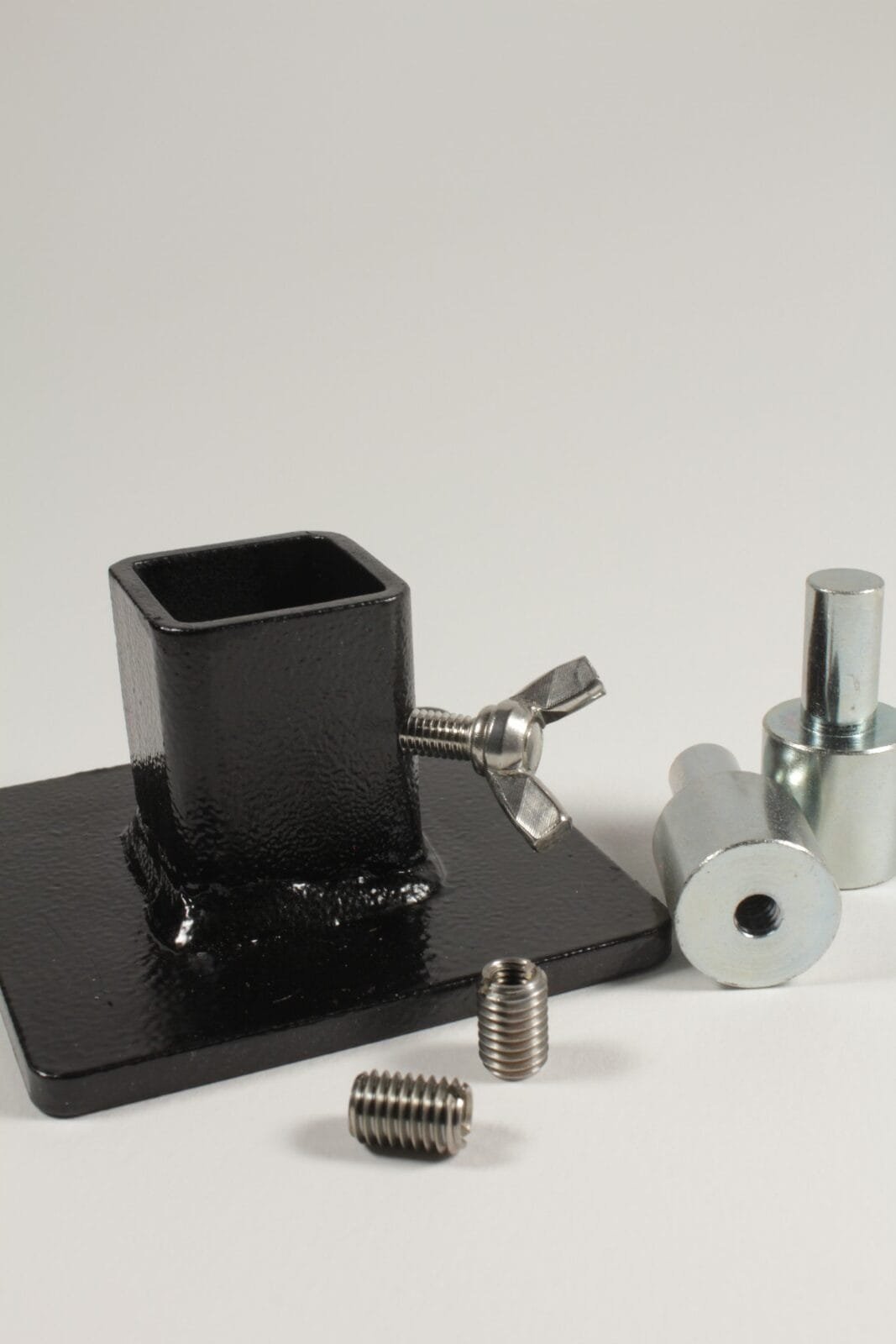

What’s Included

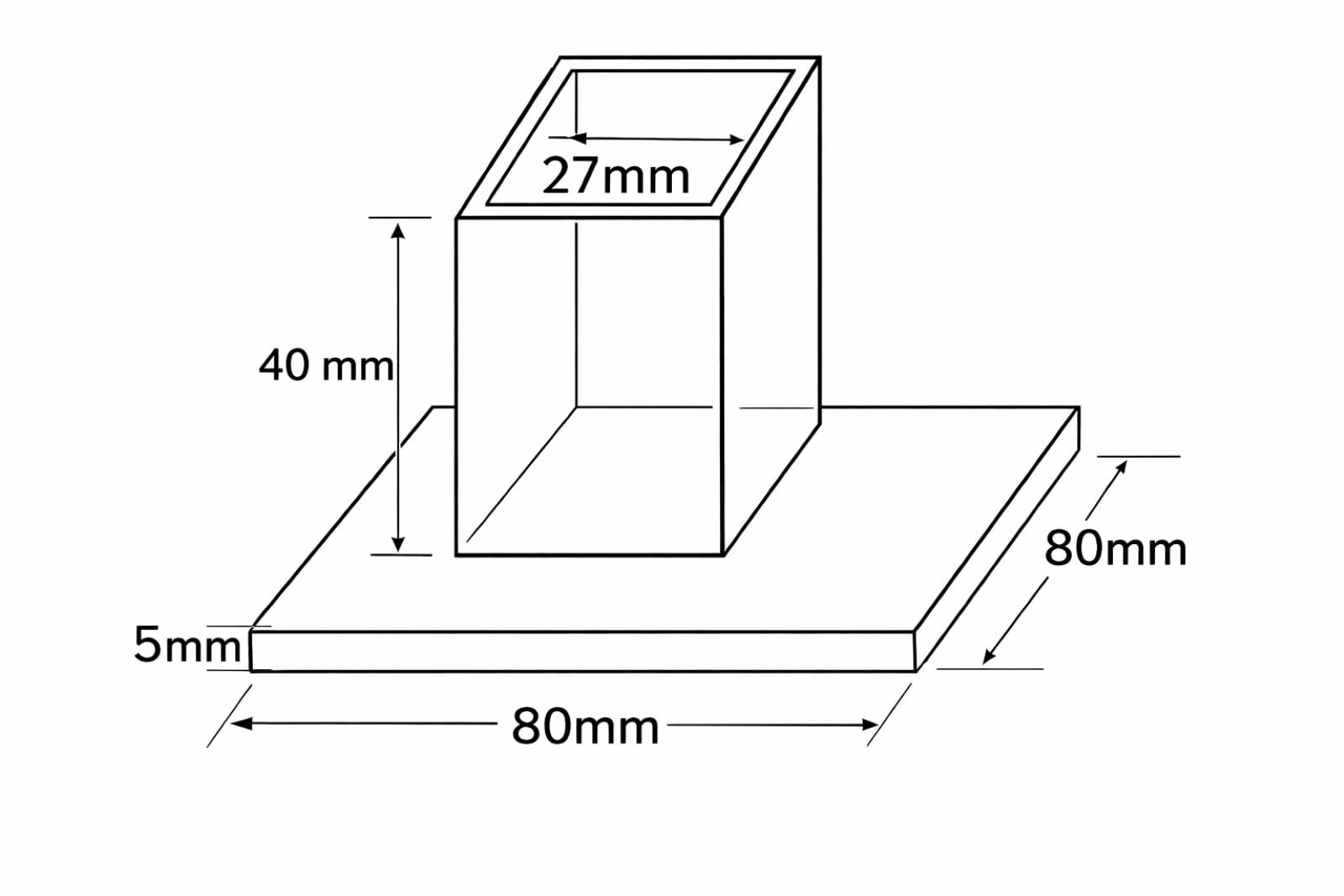

• 27mm Foot Adapter with 80 × 80mm Base Plate
  Provides a stable pressing platform and fits square rams up to 26.5mm × 26.5mm

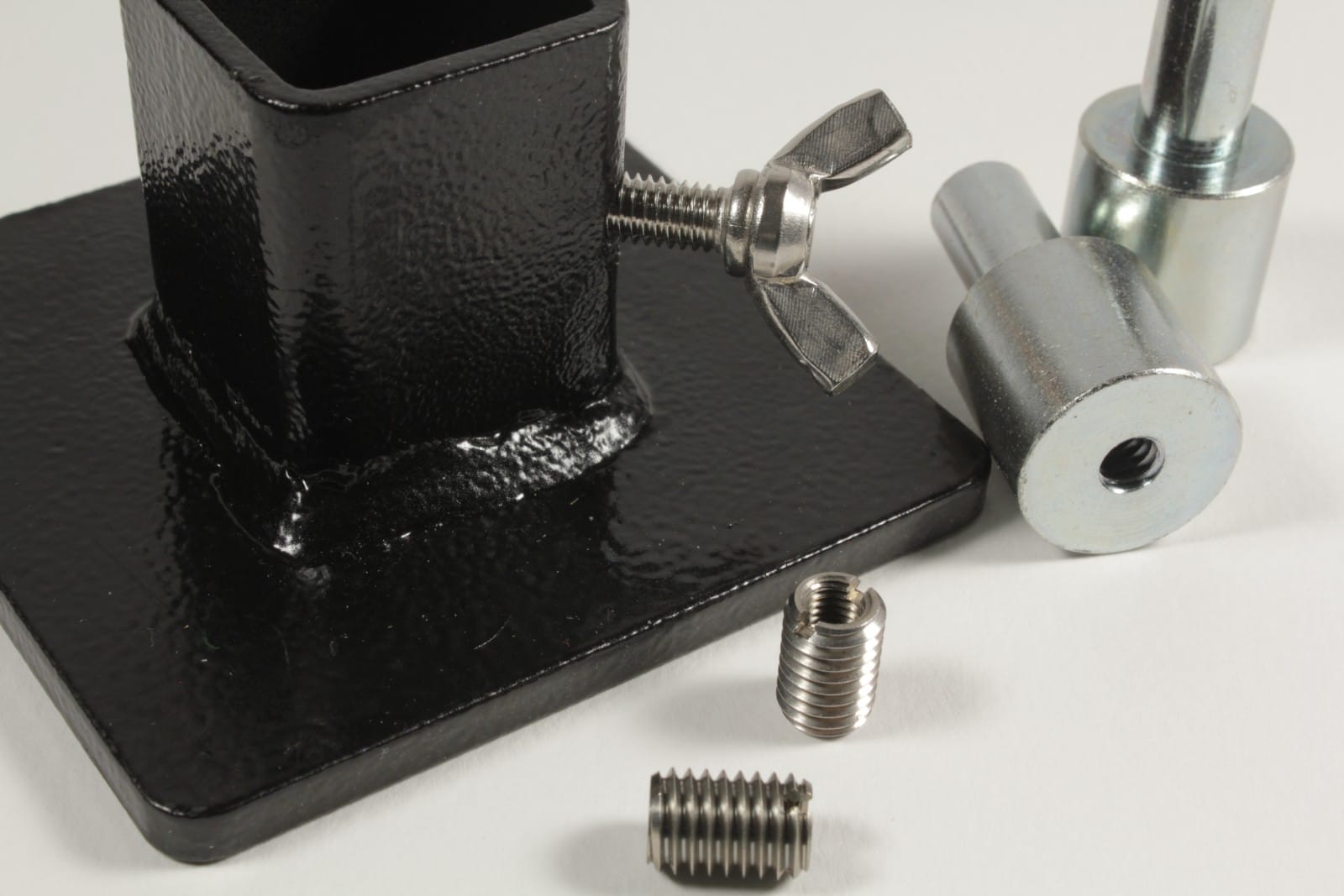

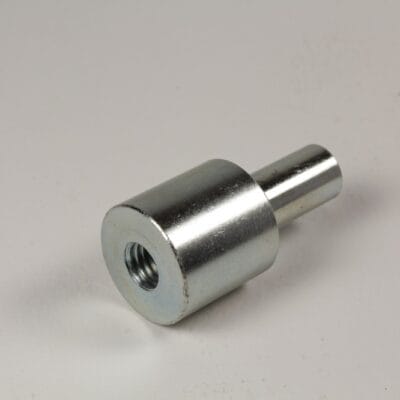

• 10mm Ram Adapter – M8 Internal Thread

• 10mm Ram Adapter – 1/4″ UNC Internal Thread

• M8 to M5 Thread Reducer Inserts (Pair)
  Allows use of M5 threaded tooling within the M8 adapter

Designed For

• Most 0.5–1 ton arbor presses

• Square rams up to 26.5mm × 26.5mm

• Presses equipped with side locking screw

• Ram must have 10mm (or larger) vertical bore

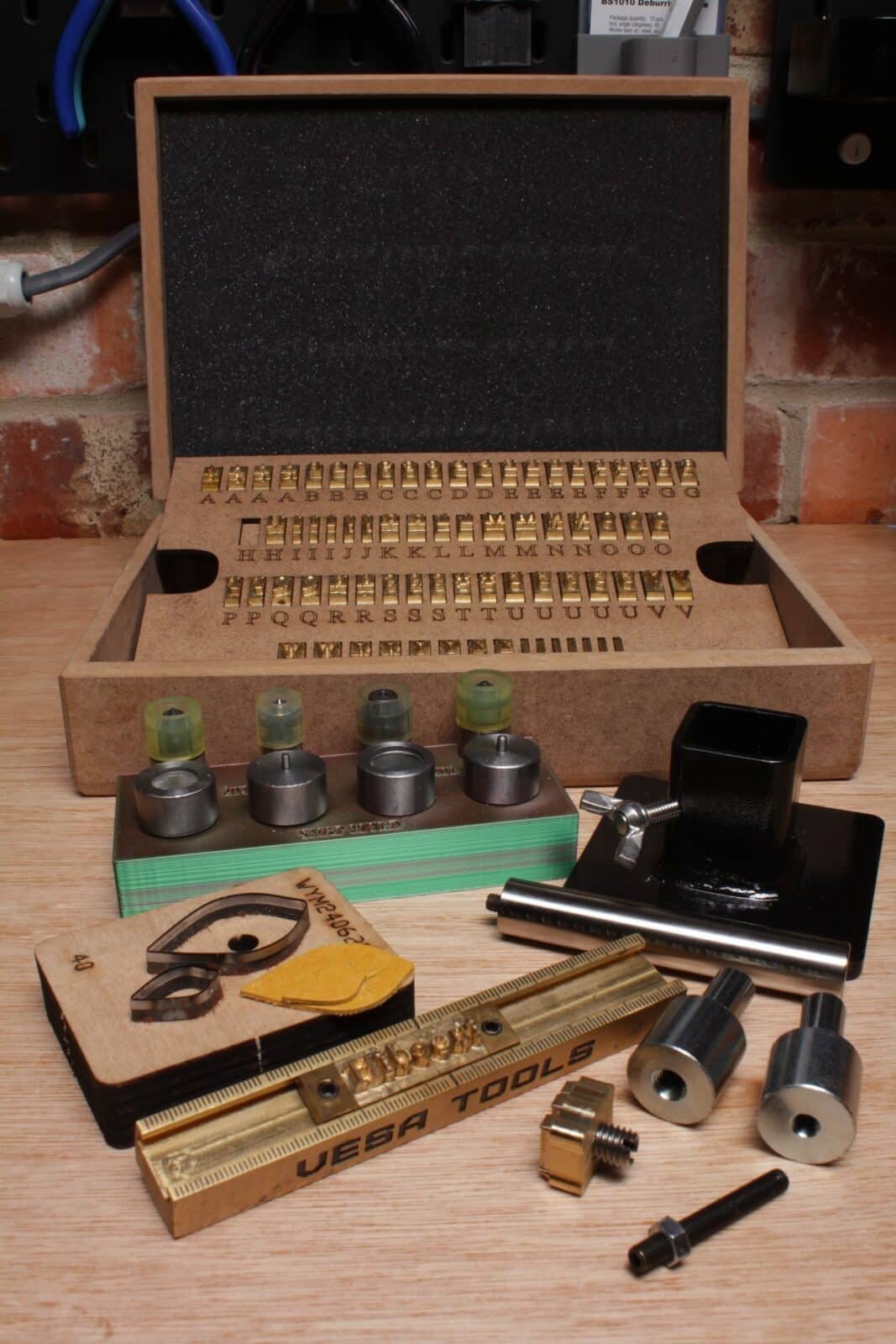

Typical Uses

• Rivet setters (Big Green Machine type)

• Logo stamps

• Letter stamp sets

• Hole punches

• Custom threaded tooling

• Dye cutters and stamping dies

Important

Tooling, stamps and rivet setters shown in images are not included unless purchased separately.

See the full workshop guide explaining how the Hideout Craft arbor press adapter system is used for die cutting, logo stamps, rivet setters, and threaded letter stamp tooling.
